Alarm log entries can be used via integration flows for active, immediate alerting using the ALARM_LOG WAS CREATED/RESOLVED trigger to Slack / Microsoft Teams or other alerting systems.
Send messages to Slack via webhook
This chapter shows how the following exemplary message from a niotix alarm protocol entry can be triggered in Slack:
Setting up the connector
The messages are forwarded to Slack via webhook. The necessary configuration in Slack can be found in the Slack documentation: Slack documentation.
Once the webhook has been set up by Slack, the url can be used in a “Webhook(Outgoing)” connector as webhookURL.
Setting up a transformation
To create a well-structured message, a transformation can be used that structures the data from the ALARM_LOG WAS CREATED/RESOLVED event in the format expected by Slack. Example of such a transformation in JSONATA:
{
"blocks": [
{
"type": "header",
"text": {
"type": "plain_text",
"text": $.value.is_resolved ? ":green_circle: Resolved Alarmlog" : ":red_circle: New Alarmlog",
"emoji": true
}
},
{
"type": "divider"
},
{
"type": "section",
"text": {
"type": "mrkdwn",
"text": "*Errormessage:* " & $.value.alarm_message
}
},
{
"type": "rich_text",
"elements": [
{
"type": "rich_text_section",
"elements": [
{
"type": "text",
"text": "Virtual device information:"
}
]
},
{
"type": "rich_text_list",
"style": "bullet",
"elements": [
{
"type": "rich_text_section",
"elements": [
{
"type": "text",
"text": "Id: "
},
{
"type": "text",
"text": $string($.value.alarm_origin.id)
}
]
},
{
"type": "rich_text_section",
"elements": [
{
"type": "text",
"text": "Title: "
},
{
"type": "text",
"text": $.value.alarm_origin.title
}
]
},
{
"type": "rich_text_section",
"elements": [
{
"type": "text",
"text": "Account: "
},
{
"type": "text",
"text": $.meta.account_name & " (Id:" & $.meta.account_id & ")"
}
]
},
{
"type": "rich_text_section",
"elements": [
{
"type": "text",
"text": "Address: "
},
{
"type": "text",
"text": $.value.alarm_origin.address
}
]
}
]
}
]
},
{
"type": "divider"
},
{
"type": "section",
"text": {
"type": "mrkdwn",
"text": "*For more details open device in niotix*"
},
"accessory": {
"type": "button",
"text": {
"type": "plain_text",
"text": "Open",
"emoji": true
},
"value": "click_me_123",
"url": $.value.alarm_origin.link ,
"style": "primary",
"action_id": "button-action"
}
}
]
}
Setting up a filter
If not all alarm log entries are to be forwarded, filters can be used to restrict the messages to be forwarded. Examples:
- Only threshold alarms from a specific smart group (with ID 42) should be taken into account:
"$.value.alarm_origin.id = 42 and $.value.log_category = 'packet-threshold'" - Only alarm protocol entries from a specific device group with the level “error” should be taken into account:
"group42" in $value.alarm_origin.groups and $value.alarm_level = "error"
Create integration flow

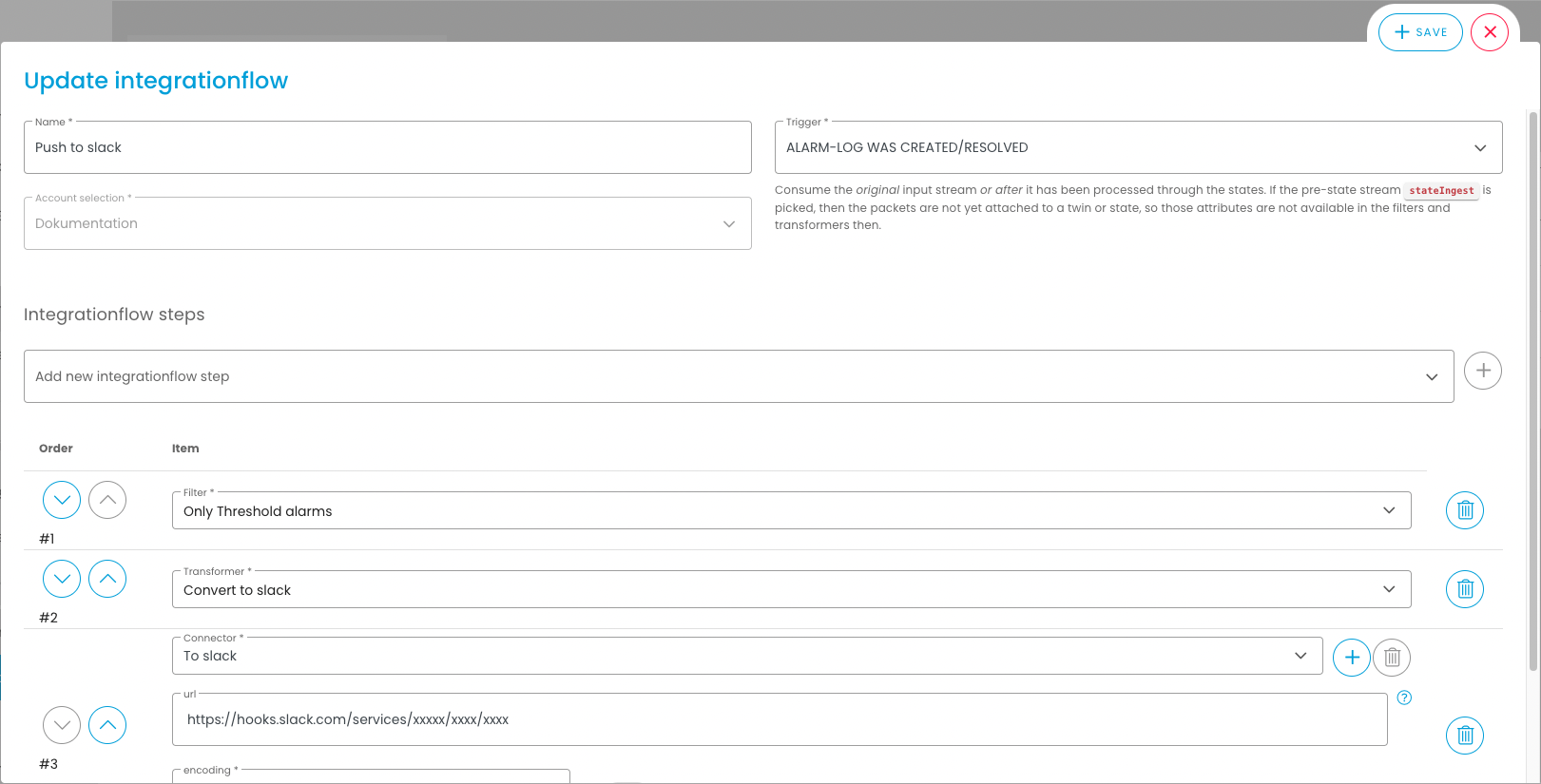

In the final step, the transformation, connector and optionally the filter are linked together in an integration flow with the trigger ‘ALARM_LOG WAS CREATED/RESOLVED’:
