Alarm log entries can be used via integration flows for active, immediate alerting using the ALARM_LOG WAS CREATED/RESOLVED trigger to Slack / Microsoft Teams or other alerting systems.
Send messages to Microsoft Teams via webhook
This chapter shows how the following exemplary message from a niotix alarm protocol entry can be triggered in Microsoft Teams:
Setting up the connector
The messages are forwarded to Microsoft Teams via webhook. The necessary configuration can be found in the Microsfot Teams documentation: Microsoft Teams documentation.

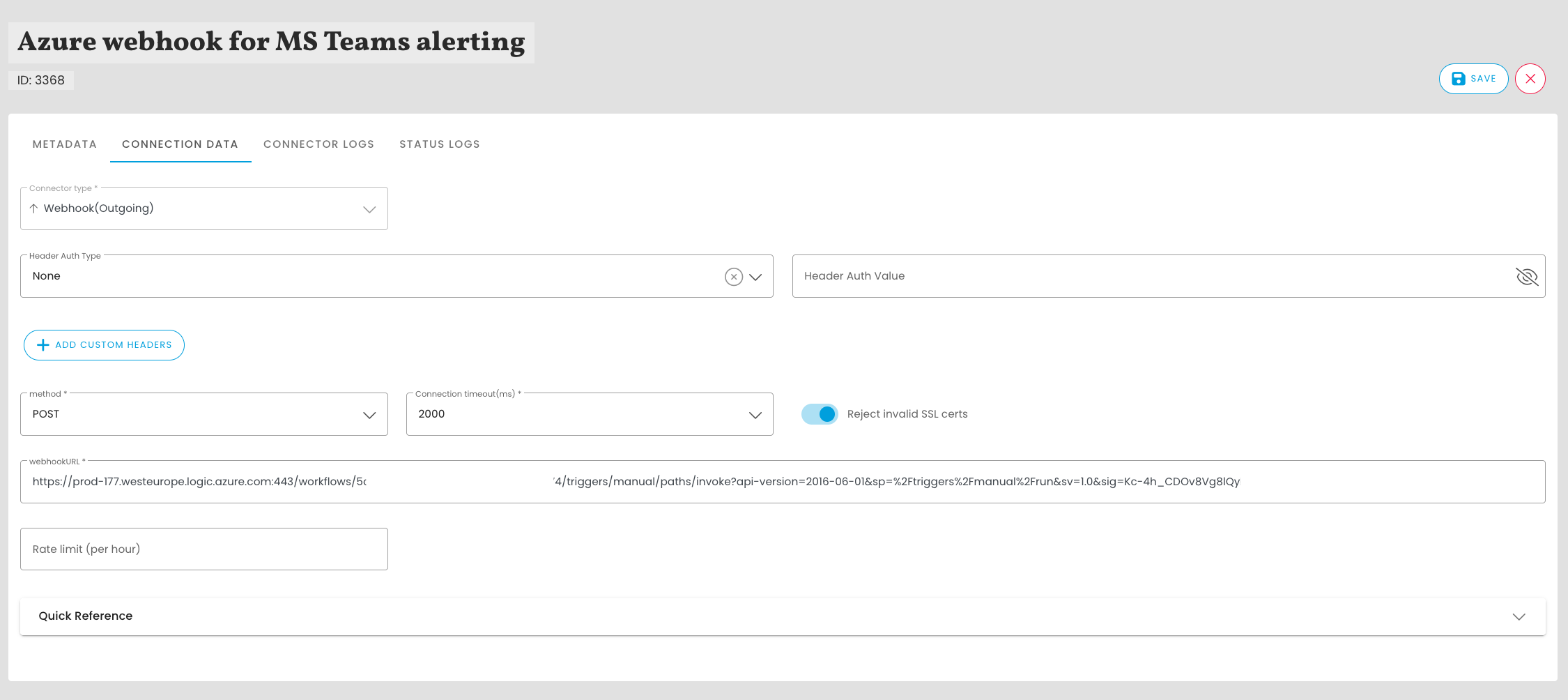

Once the webhook has been set up, the url can be used in a “Webhook(Outgoing)” connector as webhookURL.
Setting up a transformation
To create a well-structured message, a transformation can be used that structures the data from the ALARM_LOG WAS CREATED/RESOLVED event in the format expected by Microsoft Teams. Example of such a transformation in JSONATA:
{
"type": "message",
"attachments": [
{
"contentType": "application/vnd.microsoft.card.adaptive",
"contentUrl": null,
"content": {
"$schema": "http://adaptivecards.io/schemas/adaptive-card.json",
"type": "AdaptiveCard",
"version": "1.2",
"body": [
{
"type": "TextBlock",
"text": $.value.is_resolved ? "🟢 Resolved Alarmlog" : "🔴 New Alarmlog",
"weight": "Bolder",
"size": "Large",
"color": $.value.is_resolved ? "Good" : "Attention"
},
{
"type": "TextBlock",
"text": "**Errormessage:** " & $.value.alarm_message,
"wrap": true
},
{
"type": "TextBlock",
"text": "**Virtual device information:**",
"weight": "Bolder",
"spacing": "Medium"
},
{
"type": "FactSet",
"facts": [
{
"title": "Id:",
"value": $string($.value.alarm_origin.id)
},
{
"title": "Titel:",
"value": $.value.alarm_origin.title
},
{
"title": "Account:",
"value": $.meta.account_name & " (Id:" & $.meta.account_id & ")"
},
{
"title": "Address:",
"value": $.value.alarm_origin.address
}
]
},
{
"type": "TextBlock",
"text": "*For more details open device in niotix*",
"wrap": true,
"spacing": "Medium"
}
],
"actions": [
{
"type": "Action.OpenUrl",
"title": "Open in niotix",
"url": $.value.alarm_origin.link,
"style": "positive"
}
]
}
}
]
}
Setting up a filter
If not all alarm log entries are to be forwarded, filters can be used to restrict the messages to be forwarded. Examples:
- Only threshold alarms from a specific smart group (with ID 42) should be taken into account:
"$.value.alarm_origin.id = 42 and $.value.log_category = 'packet-threshold'" - Only alarm protocol entries from a specific device group with the level “error” should be taken into account:
"group42" in $value.alarm_origin.groups and $value.alarm_level = "error"
Create integration flow
In the final step, the transformation, connector and optionally the filter are linked together in an integration flow with the trigger ‘ALARM_LOG WAS CREATED/RESOLVED’:
